MACHINE SHOP

Total Plant Capacity

Cylinder block machining capacity
660 nos./ day

Cylinder head machining capacity
600 nos./day

Total machining capacity
1260 nos./day

Dedicated lines

  • ▪ Mahindra Block Line. Capacity :- 350 nos./ day

    ▪ TML Block Line. Capacity:- 150 nos./ Day

    ▪ Ashok Leyland block line :- 25 nos. /day

    ▪ TML 5L / 3L block line :- 25 nos. / day

    ▪ TML Head Line Capacity :- 350 nos./ Day

    ▪ Flexible head line :- 250 nos. / day

    ▪ MHI Block line :- 110 nos. / day

Flexible Lines

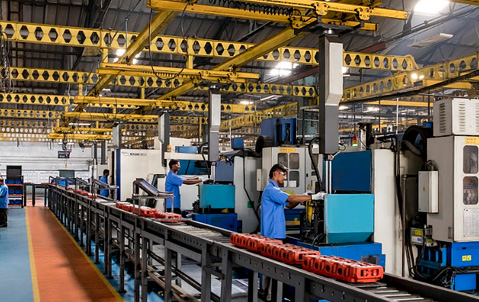

Cylinder head Line. Capacity :- 600 nos./ day

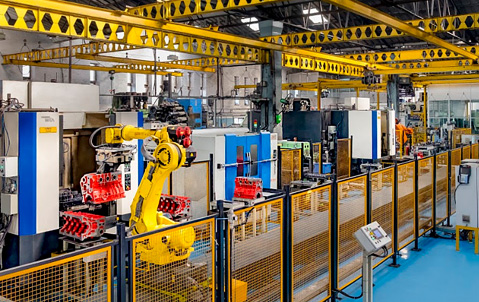

Cylinder Block Line. Capacity :- 660 nos./ day

Features

  • ▪ State of art machining facility for up to four cylinder block & head. Fully finish machining with child part assembly i.e. ready for assembly parts mfg.

    ▪ Highest flexibility – Two separate lines for head & block.

    ▪ SMED concepts to avoid set up loss.

    ▪ Automated loading & unloading to avoid dents & damages.

    ▪ Robotic drilling application for compound oil holes.

    ▪ Robotic washing facility to ensure cleanliness of components

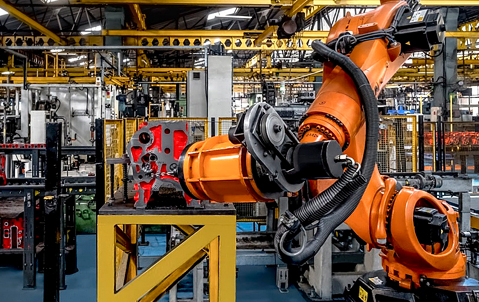

Robotic Drilling machine

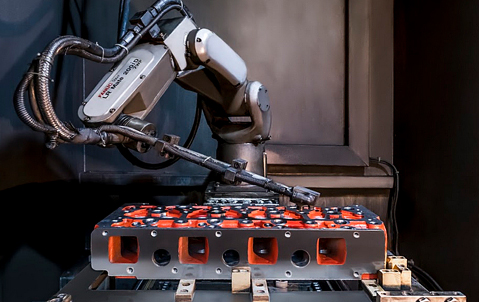

Robotic Washing applications

Other Capabilities



  • ▪ Design & manufacturing of Jig fixtures :- 2D 3D software Capability of pipe less fixture designing WMW jig boring facility Cylindrical and surface grinding facility.

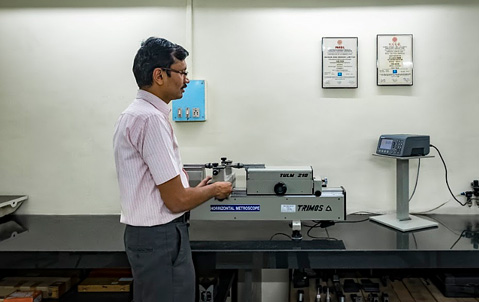

    ▪ Standard Room:- Our standard room is NABL accredited. The dedicated staff in the standard room calibrate the gauges and instruments inhouse.
